Description
Smart, Scalable Charging for Shared Spaces

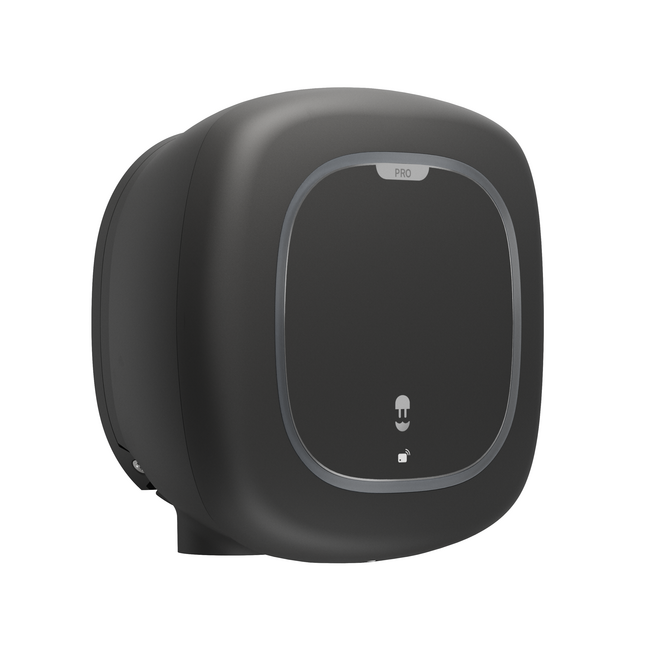

The Wallbox Pulsar Pro is a robust and intelligent AC charging station designed for high-traffic environments such as condominiums, workplaces, and fleets. With advanced features like dynamic load management, integrated 4G connectivity, and user-friendly interfaces, it ensures efficient and reliable EV charging.
Key Features
-
High-Power Charging: Delivers up to 22 kW on three-phase power, accommodating a wide range of electric vehicles.
-
Dynamic Load Management: Optimizes energy distribution to prevent grid overloads, especially when integrated with the optional Power Boost feature.
-
Smart Connectivity: Supports Wi-Fi, Bluetooth, and pre-configured 4G connections, enabling seamless integration with backend systems via OCPP 1.6 and partner APIs.
-
User-Friendly Interface: Features an intuitive Halo RGB LED ring to indicate charging status and supports user identification through RFID, NFC, and the myWallbox App.
-
Robust and Durable Design: Built with an IP55 and IK10 rated enclosure, ensuring resistance to dust, water, and impact, suitable for both indoor and outdoor installations.
-
Flexible Installation and Configuration: Designed for quick setup with flexible cable entry points and configuration via the Wallbox Portal or App.
Technical Specifications
-
Charging Power: Up to 22 kW (3 x 32 A)
-
Connector Type: Type 2 socket (IEC 62196-2)
-
Input Voltage: 230 / 400 V AC
-
Frequency: 50 Hz / 60 Hz
-
Adjustable Current: Configurable from 6 A to 32 A
-
Protection Rating: IP55 (Ingress Protection), IK10 (Impact Protection)
-
Residual Current Detection: DC 6 mA, RCD Type A required
-
Operating Temperature: -30°C to +50°C
-
Dimensions (H x W x D): 198 mm x 201 mm x 99 mm
-
Weight: Approximately 1.3 kg (without cable)
-
Connectivity: Wi-Fi, Bluetooth, pre-configured 4G
-
Communication Protocols: OCPP 1.6, partner API, SDK
-
User Identification: RFID, NFC, myWallbox App
-
Enclosure Ratings: IP55 (Ingress Protection), IK10 (Impact Protection)
-
Mounting: Wall-mounted or pole-mounted options available
-
Color Options: Black, Grey
