Description
Compact, Smart, and Powerful EV Charging Solution

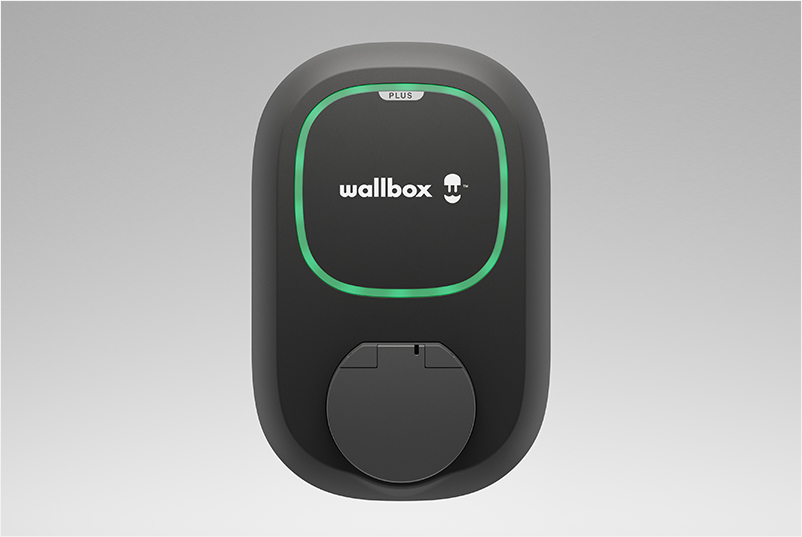

The Wallbox Pulsar Plus 22kW Socket in black delivers top-tier performance in a sleek, minimalist design. Engineered for both residential and commercial charging, it combines high-speed power, smart features, and durable construction—all in one compact unit.
Key Features
-
High-Speed Charging
Charges at up to 22 kW on three-phase power for fast and efficient EV top-ups. -
Smart App Control
Built-in Wi-Fi and Bluetooth connectivity let you monitor and manage charging from anywhere using the myWallbox app. -
Dynamic Load Balancing
Features like Power Boost and Dynamic Power Sharing intelligently manage energy use to avoid overloads. -
Compact & Stylish
Sleek black finish with a distinctive LED halo ring that visually indicates status at a glance. -
Robust & Reliable
Weather- and impact-resistant, with IP55 and IK10 ratings for safe indoor or outdoor installation. -
Flexible Setup
Supports both single-phase and three-phase installations, with adjustable current from 6A to 32A.
Technical Details
-
Max Output: 22 kW (32A, 3-phase)
-
Connector: Type 2 socket with shutter
-
Voltage Input: 230V (1-phase) / 400V (3-phase)
-
Adjustable Current: 6A to 32A
-
Enclosure Ratings: IP55 (dust/water), IK10 (impact)
-
Leakage Protection: AC 30 mA / DC 6 mA
-
Operating Temp: -30°C to +40°C
-
Dimensions: 204.3 mm x 313 mm x 142.5 mm
-
Weight: Approx. 2.5 kg
