Description

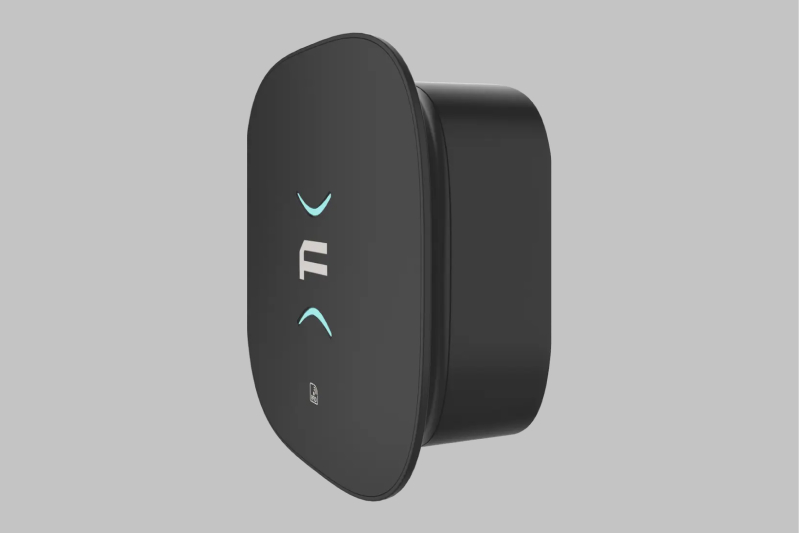

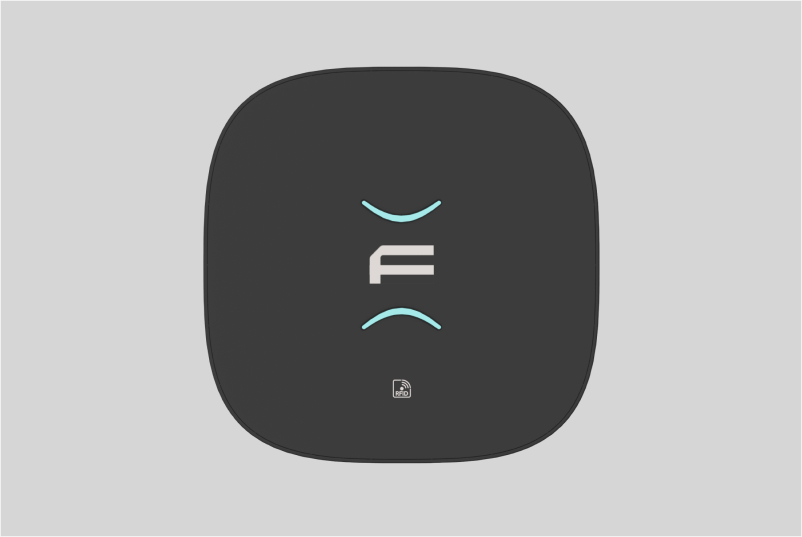

- The Talon AC Charger by Faraday Charging Solutions is a compact and versatile Level 2 EV charger designed for both residential and commercial use. With a maximum output of 22 kW, it caters to a wide range of electric vehicles, ensuring efficient and reliable charging.
Key Features
-
Power Output Options:
-
11 kW (Three-phase, 16A)
-
22 kW (Three-phase, 32A)
-
-
Connectivity:
-
Wi-Fi enabled
-
3G/4G optional
-
OCPP 1.6J support for remote management
-
-
Charging Interface:
-
Compatible with Type 1 or Type 2 connectors (cables not included)
-

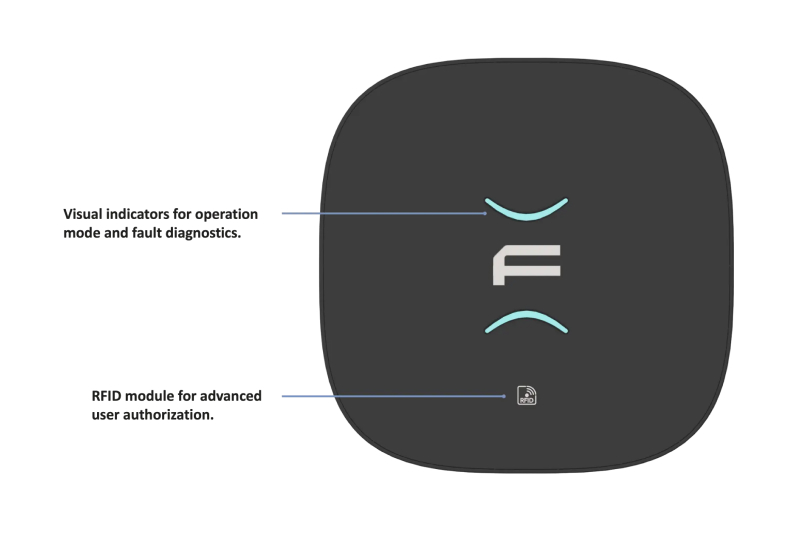

Supports plug & play, RFID card, or remote charging initiation
-
-
Safety and Compliance:
-
Residual Current Protection: Type A with optional 6 mA DC detection (RDC-DD)
-
Ingress Protection: IP65 rated for dust and rain resistance
-
Standards: Compliant with EN/IEC 61851-1:2019 and 61851-21-2:2021
-
-
Design and Installation:
-
Housing Material: Durable PVC suitable for outdoor use
-
Mounting Options: Wall or pedestal (not included)
-
Dimensions: 229 x 100 x 229 mm
-
Weight: Ranges from 4.4 kg to 5.4 kg depending on model
-
-
Environmental Operating Conditions:
-
Temperature: -30°C to +60°C
-
Humidity: 5% to 95% (non-condensing)
-
Altitude: Up to 2000 meters
-
